Vertex Temperature Controllers
Supplied by our UK and EU VERTEX Office

vertex_F_Series

TheVertex F Series controller is our NEW LOW COST yet HIGH SPEC controller.

F4 is the 48mm x 48mm, F6 is our 96mm (w) x 48mm (h) and the F9 96mm x 96mm. Avaliable in IP65 if required.

Use this controller where Inexpensive but Good Control is important !!!

Vertex_VT26_Series

The VT26 Series is our FUZZY enhanced three term (PID) Dual Display, self tuning controller,

Designed for use in applications where "control accuracy" is important.

Use this controller where control accuracy is important !!!

Vertex_VT30

The VT30 Series is our "Profile Programmable" 16 step ramp and soak controller.

FUZZY enhanced three term (PID) Dual Display, self tuning controller, designed for

Use in applications where "control accuracy" and "Profile Control" is required.

The VD26 Series is a Single Display on/off yet versatile controller.

It is designed as a replacement for the older "Analog" units (dial type) or for applications where precise control is not needed.

Solid State Relays 10 amp, 25 amp and 40 amp.

Solid State Relays are state-of-the-art Semiconductor Relays intended to replace contactors that when used with "PID" controllers give you the best possible control results.

SD660 Digital Indicator Display

Our Digital Indicator has a large easy readable display, is configurable on input for all thermocouples and RTD and comes c/w 2 alarm outputs. You can have up to 4 alarm outputs.

SD5 Image

SD5 Digital Indicator Display

Our SD5 Digital Indicator has dual display one showing the input reading and the other indicating which channel that is for. It is configurable on input for all Type J, Type K, Type T and din RTD and comes c/w 2 alarm outputs. You can have as an optional extra RS485 comms. IP65 rated.

SD430 Image

SD430 Large Digit 4 inch Digital Indicator Display

Our SD430 Digital Indicator uses a 4 inch digit size display either with 3 or 4 digits. It can be designed to function as a stand alone display or as a master functioning as a remote large display for a temperature controller or indicator elsewhere in the plant. Otherwise from a functionality point of view it is much like our SD660.


MPC Image

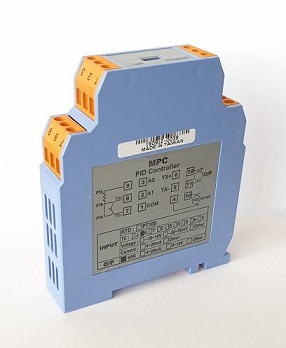

MPC Vertex DIN Rail PID Controllers

with Soft Start, Ramp and other great features such as 8 segment Profile Control (8 x ramp and soak steps) and two Transistor Output alarms. Use this "in panel" DIN rail controller with your PLC or DCS or PC or Scada system or simply as a blind stand alone unit. Avaliable in SSR or analog 4~20 mA or 0~10 Vdc. No relay output.


head Mount Non Image

NST-H Non-Isolated PROGRAMMABLE Transmitter (Head Mount)

Our Head Mount thermocouple and RTD transmitter fits a size KN head and is easy to program using our free software and a simple USB cable from any PC. Really low cost high reliability ! To calibrate simply select the thermocouple type and range using the software and PC cable port, without any external wires or power connected.

IST_H Image

IST-H Isolated PROGRAMMABLE Transmitter (Head Mount)

Our Isolated Head Mount thermocouple and RTD transmitter fits a size KN head and is easy to program using our free software and a simple USB cable from any PC. Really low cost high reliability ! To calibrate simply select the thermocouple type and range using the software and PC cable port, without any external wires or power connected.



YouTube Video Link
Please search in YouTube for Vertex Temperature Controllers to see our useful product help videos.
Manuals and Technical Info

Check out and print any manual or technical article that may interest you.
