SD 660

Digital Indicator

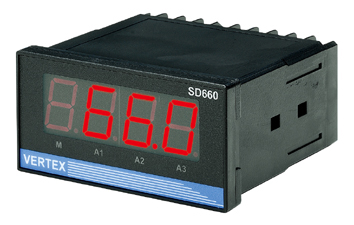

Vertex SD 660 Digital Display Indicator is a low cost, yet reliable, Digital Panel Indicator. It boasts a 0.8 inch LED Display that is easy to read from a reasonable distance. They come standard with two alarms, and can have as optional extra up to 4 alarms. These are ideal for speed displays on extrusion machines etc when used with a 0~10 Vdc input signal. RS485 comms are also available so that these indicators can be networked.

SD660 Brochure ..............................SD660 User Manual ..............................SD660 Instruction Videos

Ready to Buy SD660


Inputs Inputs are configurable for all thermocouples and RTD (PT100) from the front panel membrane. Other analog inputs including 4~20 mA and 0~10 Vdc are alos avaliable
Ranges You can also set any range to suit your application. There are "high" and "low" limits that you can set
Alarms The indicator comes standard with 2 configurable alarms and can have up to 4 alarms.
Input Filter There is an adjustabe input filter to smooth the input signal when trying to control those difficult applications
Din Size

SD 660 ....96w x 48h


back to top
Back to Main Page


Power supply

90~264 Vac. 50/60 Hz or Vdc

18 ~ 32 Vac or Vdc

Inputs Type J, K, R, T and PT100 selectable from front panel How to Change Input Type
Ranges as per table : View Ranges
Accuracy +/- 1ºC for Thermocouple +/- 0.2ºC for PT100
Ambient Temp 0-50ºC
Humidity 0-90% non-condensing IP63 rated
Power Consumption Less than 3 VA

2 Year Warranty
